Simplifying topology by compositing individually selected surfaces is often a tedious and time-consuming task. The simplify command addresses the tedium by automatically compositing surfaces and curves based on selected criteria between neighboring entities. Figure 1 shows a typical example of simplify command usage (‘simplify volume 1 angle 15’).

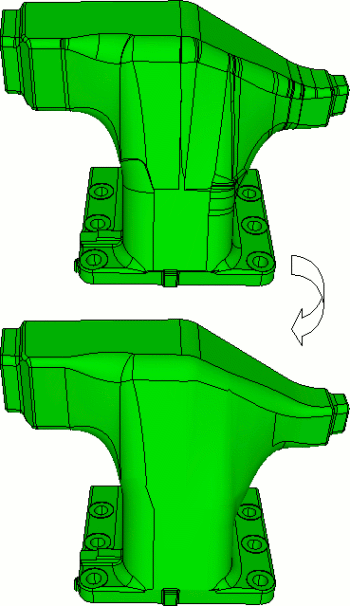

Figure 1. Typical Simplify command usage
The command syntax and discussion items are shown below.
Simplify {Volume|Surface|Curve} <range> [Angle< value >] [Respect {Surface <id_range> | Curve <id_range> | Vertex <id_range>| Imprint | Fillet}] [Preview]
Feature angle is defined as the angle between the normals of adjacent surfaces at the shared curve. At each facet point along the curve, a normal is computed for each surfaces. If at any point the angle between the two normals is greater than the feature_angle, the surfaces are not composited. If all angles between normals are less than feature_angle, the two surfaces are composited (assuming any other specified criteria are met). Feature angle is always used as the criteria and if an angle is not specified the value is set to 15 degrees.

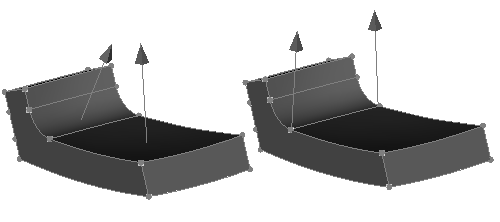

Figure 2. Feature Angle
The simplify command can also be used to automatically composite curves using an angle tolerance. Curves will be composited together only if they are explicitly specified in this command, and not as the result of two surfaces being composited.
Surfaces, curves, and vertices can be specified to prevent geometry features from automatically being composited. Figure 2 show an example of respecting a surface (‘simplify vol 1 angle 15 respect surf 289’).

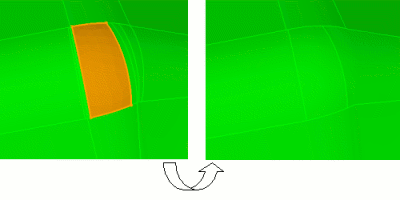

Figure 3. Respecting a surface
For complex geometries, it is often useful to preview the simplify command and then add any respected geometry to the command respect lists.
Curves created by imprints can automatically be respected by the simplify command. Figure 3 shows an example of geometry with split fillets.

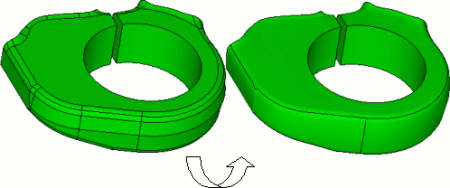

Figure 4. Respecting imprint geometry
Notice that in the split curves are respected by the Simplify command (‘simplify vol 1 angle 40 respect imprint’).
The preview option shows what curves are respected without compositing any surfaces. It should also be pointed out that multiple respect specifications can be chained together. For example:
Simplify volume 1 angle 15 respect curve 1 respect imprint respect fillet preview
